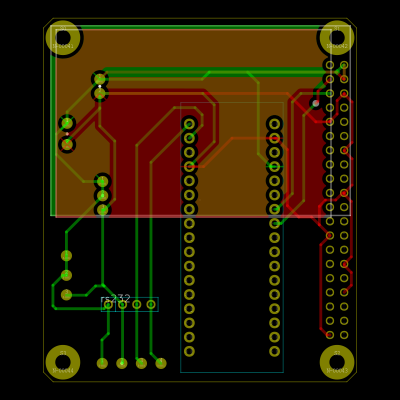

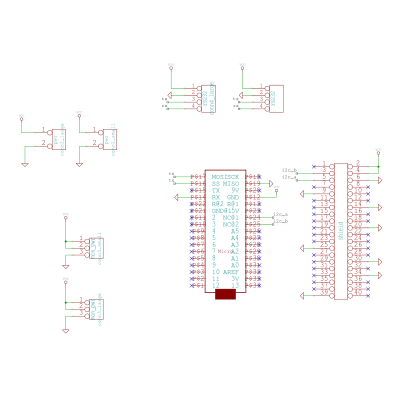

image	ca1618016c adding image of schematic and board	4 年之前
json	d01c79d99a next rev of popushield	4 年之前
README.md	ca1618016c adding image of schematic and board	4 年之前

Popushield

A shield for the Raspberry Pi in the DIU. This sits on the top most layer above the RPi and GPRS modem.

The shield is simple in that it mostly routes power or signal through to the Arduino seated on it.

License

All design files in this directory, unless otherwise explicitly noted, are under a CC0 license.
