Popufare Driver Interface Unit Housing, Version: Amaranth

2020-02-27

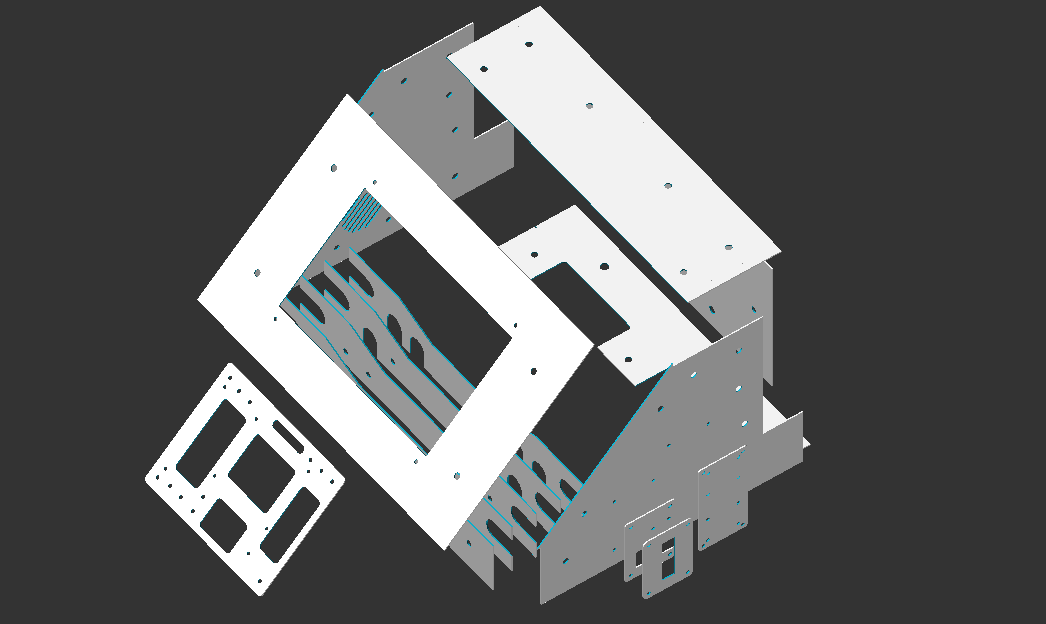

housing preview

This is version 'amaranth' of the Driver Interface Unit (DIU) housing.

  • Attaches to legacy DIU mounting bracket
  • 7 inch capacative display
  • Increased height to accomodate larger display
  • added bracketing for buck converter on top back
  • added bracketing for screw terminal on top back
  • added power connector to side
  • added max232 connector to side
